Sullivan-Palatek® Industrial Electric Rotary Screw
The Ultimate Performance Rotary Screw Air Compressor - Sullivan Palatek® provides low maintenance, high performance and one of the most reliable air ends in the industry. FIVE YEAR WARRANTY. With many models from which to choose in both single-stage and two-stage, we can match your needs exactly. RECOMMENDED FOR: Automotive, Dry Cleaning, Service Fleets, Industrial and Refineries
-
M SERIES
INDUSTRIAL AIR COMPRESSOR – 5, 7.5, 10 HP M-SERIES
DOWNLOAD SPEC SHEET- Modular oil flooded rotary screw continuous duty industrial air compressor
- 208/230/460/575 volt 3-phase open drip motor
- Full voltage magnetic starter with 110 volt control powe
- Automatic dual control
- Line pressure gauge, oil temperature gauge, and hour meter
- Air cooled oil cooler/aftercooler with Palasyn 45, 4000 hour synthetic oil
- Spin on type oil fi lter and separator elements for ease of maintenance
- Air Filter: combination pleated and foam dry type, easily replaceable
-
C SERIES
C-SERIES, C-15\20\25\30 15-30 HP
INTEGRAL DRYERS \ INDUSTRIAL ELECTRIC COMPRESSORS
DOWNLOAD SPEC SHEET- Energy efficient
- Quiet – 68dba
- TEFC motor
- 208/230/460/ 3/60
- 230/1/60
- Microprocessor control
- Multi point measuring and
protection of pressure and
temperature - RS-485 communication
interface function - Seven function
maintenance schedule/
monitoring - Full function electrical
control for motor protection
C-SERIES, C-5\7.5\10
5-10 HP \ INDUSTRIAL ELECTRIC COMPRESSORS
DOWNLOAD SPEC SHEET
- Energy efficient
- Quiet – 68dba
- TEFC motor
- 208/230/460/ 3/60
- 230/1/60
- Microprocessor control
- Multi point measuring and
protection of pressure and
temperature - RS-485 communication
interface function - Seven function
maintenance schedule/
monitoring - Full function electrical
control for motor protection
-
D SERIES
15 – 40 HP COMPRESSORS
DOWNLOAD SPEC SHEET• Electric Motor 208, 230, 460, 575 Volts
• Motor Starter – 208/230/460/575 Volt (15-25 HP) 460/575 Volt (30-40 HP)
• Protective Devices
• Oil Level Sight Glass
• ASME Coded 200 PSI Separator/Sump Tank
• Direct Drive Coupling
• Quality Instrumentation
• All new Platinum and Platinum-Plus Warranties available. -
DG SERIES
INDUSTRIAL AIR COMPRESSOR – 25, 30, 40, 50 HP Direct Gear Drive
DOWNLOAD SPEC SHEET• Air filter pop-up indicator
• Auto restart
• Base load transfer 2 or 3 machines
• CDD – Intergrated Desiccant Dryer System
• CRP – Condensate Management Package
• Enclosure
• HATD Shutdown switch
• Microprocessor control
• Motor option TEFC
• Percent capacity gauge
• Platform mounted (25-30-40 HP)
• Receiver 240 or 400 gallon vertical
• Separator trap
• Starter options: Nema-4, Wye – Delta, Solid State,
or VFD
• Tank mount 120, 200, 240 gallon
• Water cooled -

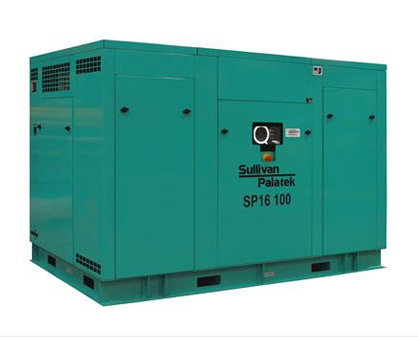

SP16 SERIES
INDUSTRIAL AIR COMPRESSOR 75-125 HP
DOWNLOAD SPEC SHEET• Air End – SP series manufactured by Sullivan-Palatek
• dba Rating – 72-74 dba, 66-68 dba with optional enclosure
• Electric Motor
• Motor Starter – MFV with 115 volt control, NEMA 4/12
Optional: NEMA 4, Wye Delta, Solid State reduced voltage, variable frequency drive available.
• Water Trap – Standard on all SP-Series compressors
• Lubricant – Factory filled with our 8,000 hour Pal-Extra 44
• Lube Fill & Level – Separate O-ring fluid fill port and bulls eye style level indication sight glass
• Separator Tank – ASME coded 200 psi tank, relief valve, minimum pressure/check valve.
Optional 300 psi available for 250 psi working pressure applications.
• Cooling System – Large side by side lube and air cooled aftercooler.
• Air Intake Filter – Oversize dry type with easily replaceable elements
• Inlet/check valve – One piece housing for dependable performance. Modulation – 0 to 100%.
• Coupling & Drive – Compressor is flange mounted to motor C-face for positive alignment
• Controls – S-P microprocessor controller w/ sequencer, lead lag and remote monitoring for up to 8 machines. -

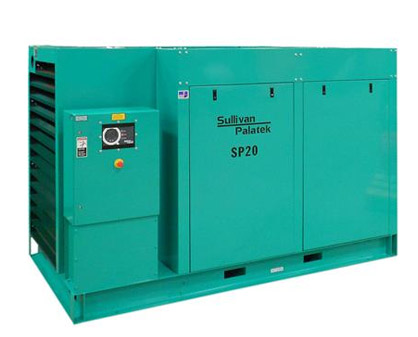

SP20 SERIES
INDUSTRIAL AIR COMPRESSOR 125-300 HP
DOWNLOAD SPEC SHEET• Electric Motor – 460/575/3/60 standard, 50 cycle 208/380/415, (208/230/3/60 optional on most models)
• Motor Starter – 460 volt, FVM with 115 volt control, NEMA 1
Optional: NEMA 4, Wye Delta, Solid State available.
• VFD Option – 460 volt, NEMA 1 Standard
NEMA 12, NEMA 4 Optional
• Lube Fill & Level Elbow – One piece fluid fill elbow and level indication sight glass
• Separator Tank – ASME coded 200 psi tank, relief valve, minimum pressure/check valve.
Optional 300 psi available for 250 psi working pressure applications.
• Cooling System – Large side by side lube and air cooled aftercooler.
• Air Intake Filter – Oversize dry type with easily replaceable elements
• Inlet/check valve – One piece housing for dependable performance. Modulation – 0 to 100%.
• Coupling & Drive – Compressor is flange mounted to motor C-face for positive alignment and direct drive.
• Controls – S-P microprocessor controller w/ sequencer, lead lag and remote monitoring for up to 8 machines.
Optional: Deluxe gauge pane
Sullivan-Palatek® provides low maintenance, high performance and one of the most reliable air ends in the industry. FIVE YEAR WARRANTY.
Their Advanced Design features oversize radial thrust bearings and precision working rotary screws provide virtually no wear. Less friction, less heat. Compressor runs cool and the circulating fluid lasts longer.
