Champion® R and PL Series Oil-Lubricated Reciprocating Air Compressors
RECOMMENDED FOR: Automotive, Dry Cleaning, Service Fleets, Industrial and Refineries With many models from which to choose in both single-stage and two-stage, we can match your needs exactly.

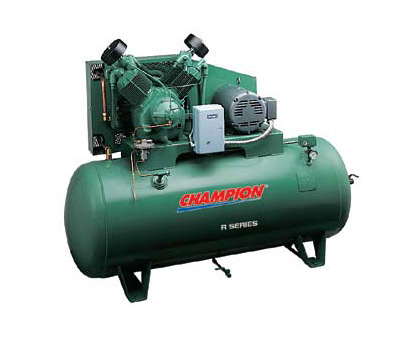

Champion® R and PL Series - Horizontal Tank Mounted Units — Electric Driven - 175 PSI Rating
| wdt_ID | MOTOR HP | CFM DEL | TANK CAP GAL. | PUMP COMP MODEL | R-Series CASRSA | L x W x H inch | SHIPPING LBS | RPM |
|---|---|---|---|---|---|---|---|---|
| 5 | 7½ | 23.1 | 80 | R-15B | HR7F-8 | 66½ x 23¼ x 49 | 570 | 990 |
| 4 | 5 | 17.3 | 80 | R-15B | HR5-8 | 66½ x 23¼ x 49 | 535 | 734 |
| 6 | 10 | 34.8 | 120 | R-30D | HR10-12 | 70½ x 25 x 53¼ | 890 | 740 |
| 7 | 15 | 49.0 | 120 | R-30D | HR15F-12 | 70½ x 25 x 53¼ | 840 | 1045 |
| 8 | 25 | 90.1 | 120 | R-70A | HRA25-12 | 72 x 27½ x 64½ | 1365 | 770 |
| 9 | 15 | 53.7 | 120 | R-40A | HRA15-12 | 72 x 27½ x 62 | 1110 | 770 |
Champion® R and PL Series - Vertical Tank Mounted Units — Electric Driven - 175 PSI Rating
| wdt_ID | MOTOR HP | CFM DEL | TANK CAP GAL. | PUMP COMP MODEL | R-Series CASRA | L x W x H inches | RPM | SHIPPING LBS |
|---|---|---|---|---|---|---|---|---|
| 1 | 5 | 17.3 | 80 | R-15B | VR5-8 | 32½ x 24 x 75 | 734 | 545 |
| 2 | 7½ | 23.1 | 80 | R-15B | VR7F-8 | 32½ x 24 x 75 | 990 | 635 |
| 3 | 10 | 34.8 | 120 | R-30D | VR10-12 | 43½ x 30 x 81 | 740 | 890 |
*Pressure Lubricated units are capable of 250 PSIG operation; units tested in accordance with CAGI/PNEUROP Acceptance Test Code PN2CPTC2.

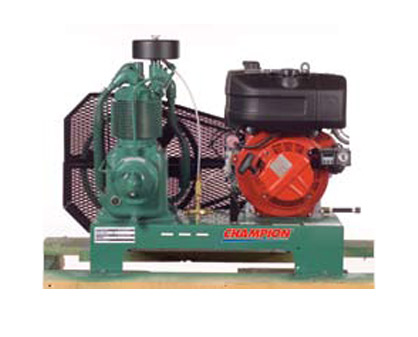

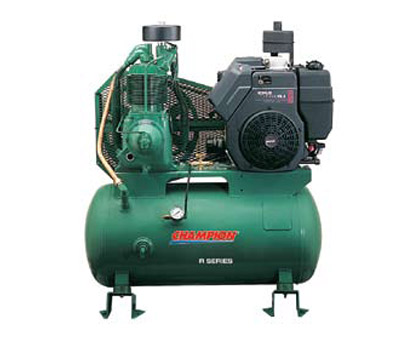

Champion® R and PL Series - Engine Driven Units - 175 PSI Rating
| wdt_ID | MOTOR HP | CFM DEL | TANK CAP GAL. | PUMP COMP MODEL | R-Series CAERSA | L x W X H inch | RPM | SPLASH SHIP LBS |
|---|---|---|---|---|---|---|---|---|
| 1 | 13 | 23.2 | 30 | R-15B | HGR7-3K | 38 x 22¾ x 45½ | 1025 | 409 |
NOTE: Pressure lubricated units are capable of 250 PSIG operation. 20 HP and larger packages do not come equipped with a fuel tank. *Diesel Driven **No alternator Units tested in accordance with CAGI/PNEUROP Acceptance Test Code PN2CPTC3.
Champion® R and PL Series - Bare Pumps
| wdt_ID | Motor HP | CFM Del 125 PSI | CFM Del 175 PSI | CFM Del 250 PSI | R-Series CAPRSA | PL-Series CBPPLA | RPM 125 PSI | RPM 175 PSI | RPM 250 PSI | Bore inches dia. | Stroke inches | Number Cylinders | Oil Capacity quarts | Approx Ship Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 2 | 8.3 | 7.5 | NA | R-10D | NA | 765 | 725 | NA | 4 5⁄8 & 2 ½ | 2 | 2 | 2 | 125 |
| 16 | 5 | 19.1 | 17.3 | 13.6 | R-15B | PL-15A | 805 | 734 | 640 | 4 5⁄8 & 2 ½ | 3 | 2 | 2 | 125 |
| 17 | 10 | 37.3 | 34.8 | 27.5 | R-30D | PL-30A | 810 | 740 | 640 | 4 5⁄8 & 2 ½ | 3 | 4 | 4 | 220 |
| 18 | 25 | 102.1 | 90.1 | 76.8 | R-70A | PL-70A | 890 | 770 | 660 | 6 1⁄4 & 3 1⁄4 | 4 | 4 | 6 ½ | 570 |
High Performance
R- and PL-Series compressors are loaded with features designed for day-in, day-out performance. For example, Champion’s unique automotive- type domed piston design allows the use of large diameter, low lift valves, while minimizing
clearance volume for maximum air delivery.
Long Life
Features such as slow speed operation, rugged cast iron crankcase construction, corrosion resistant steel valves and tapered roller-type main bearings all contribute to long life.
User-Friendly Design
A wide selection of configurations and available options, coupled with serviceability features make it easy to operate and maintain a Champion compressor. Compare all the features. You’ll discover why Champion is the value leader in reciprocating compressors for a broad range of automotive and industrial applications.
THE SOLUTION TO YOUR APPLICATION
Select the configuration that matches your application
With many models from which to choose in both single-stage and two-stage, we can match your needs exactly. These configurations, combined with a wide choice of options, provide all the components for a customized installation. They are available in both R-Series splash-lubricated and PL-Series pressure-lubricated models.
Tank-Mounted Air Compressors
Available with horizontal or space-saving vertical tanks, two-stage air compressors compress air to a higher pressure than single stage compressors.
Base-Mounted Air Compressors
Designed for installations where air tanks are remotely located.
Duplex Air Compressors
For extra air delivery when you need it without wasted space. Plus the flexibility of single operation, alternating between compressors, or duplex operation to meet high air demand.
Gasoline or Diesel Engine Powered Air Compressors
Truck and utility bed mounting design makes these compressors ideal for fleet and field service. Ideal for applications where electricity is not available.
Bare Compressor Pumps
Provide dependable service for industrial applications, pump replacement or OEM applications. The rugged pump design assures reliability and long maintenance intervals.
Compressor Pump Warranty
Each new Champion Assembled Unit has a five (5) year warranty on the compressor pump only, against defects in materials or workmanship under normal use and service, from the date of installation or sixty-six (66) months from the date of shipment by Champion or a Champion distributor, whichever may occur first. The five-year extended warranty covers parts and labor and is prorated over the five years as follows: Year One — 100% coverage Year Two — 90% coverage Year Three — 80% coverage Year Four — 70% coverage Year Five — 60% coverage Head valves are warranted for Year One only. Champion makes no warranty on components and/or accessories furnished to Champion by third parties, such as electric motors, gasoline engines and controls. These are warranted only to the extent of the original manufacturer’s warranty to Champion. Electric motors must be equipped with thermal overload protection to have warranty consideration. The extended five-year warranty will apply to ASME air receivers if they are installed on rubber vibro isolator pads or approved equivalent.
Limited Warranty
Warranty shall not apply to any equipment which has been subjected to misuse, neglect or accident, nor shall it apply to any equipment that has been repaired or altered by any person(s) not authorized by Champion. Failure caused by lack of proper maintenance is not covered by warranty. In no event shall Champion be liable for consequential damages or contingent liabilities arising out of failure of any compressor or part to operate properly. When a compressor pump or component is changed or replaced during the warranty period, the new/replaced item(s) is warranted for only the remainder of the original warranty period. Complete warranty details are included in compressor operating manual.
5 Year Electric Motor
Electric motor is warranted for 60 months from start-up or 63 months from shipment. Other manufacturer’s motors furnished due to customer request or special requirements carry the motor manufacturer’s warranty. Package Warranty Champion warrants each new air compressor package to be free from defects in material and workmanship under normal use and service for a period of one year (12 months) from the date of installation or 15 months from the date of shipment by Champion.
Package Warranty
Champion warrants each new air compressor package to be free from defects in material and workmanship under normal use and service for a period of one year (12 months) from the date of installation or 15 months from the date of shipment by Champion.
